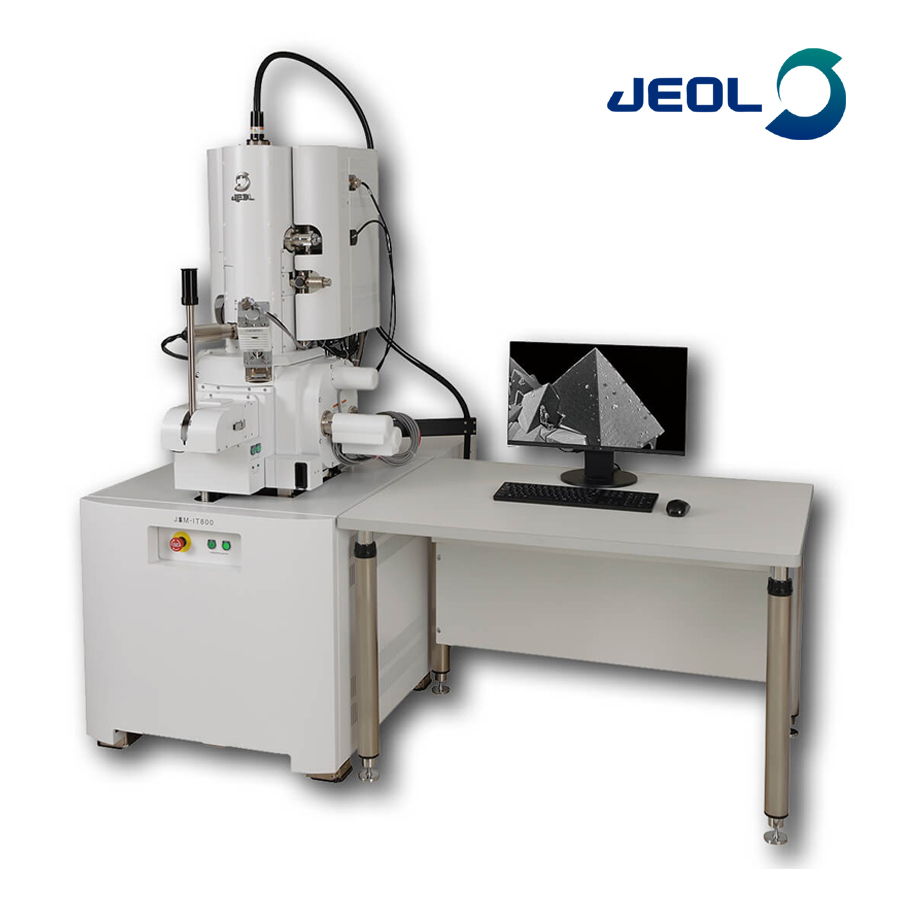

JSM-IT800

Ultrahigh Resolution Field Emission SEM

The JEOL IT800 Ultrahigh Resolution Field Emission SEM is a revolutionary FE-SEM with the most advanced high-resolution analytical technology available today. The JEOL IT800 series offers the next level of analytical intelligence for high spatial resolution imaging and analysis at the nanoscale.

The JSM-IT800 incorporates our "In-lens Schottky Plus field emission electron gun" for high resolution imaging to fast elemental mapping, and an innovative electron optical control system "Neo Engine", as well as a system of seamless GUI "SEM Center" for fast elemental mapping with a fully embedded JEOL energy dispersive X-ray spectrometer (EDS), as a common platform.

The JSM-IT800 allows for the replacement of the objective lens of the SEM as a module, offering different versions to satisfy various users requirements. With the JSM-IT800, five versions are available with different objective lenses: a hybrid lens version (HL), which is a general-purpose FE-SEM; a super hybrid lens version (SHL/SHLs, two versions with different functions), which enables higher resolution observation and analysis; and the newly-developed semi-in-lens version (i/is, two versions with different functions), which is suited for the observation of semiconductor devices.

Furthermore, the JSM-IT800 can also be equipped with a new Scintillator Backscattered Electron Detector (SBED) and a Versatile Backscattered Electron Detector (VBED). The SBED enables the acquisition of images with high responsiveness and produces sharp material contrast even at a low accelerating voltage, while the VBED can help obtain images of 3D, topography and material contrasts. Thus, the JSM-IT800 can help users to obtain information that was not obtainable and to solve problems in measurement.
